HiFi Decoder SMSL SU-8 2ES9038Q2M USB PCM32 768kHz DSD64 DSD512 DSD Balance DAC Decoder
DESCRIPTION
- ESS technology latest ES9038Q2M DAC, with the new 32-bit HyperStream II architecture, improving sound quality and DoP function.
- 2nd generation of XMOS USB audio solution xCore200, PCM sampling rate supported up to 32bit/768kHz and DSD up to DSD512.
- Ultra-low jitter asynchronous design and using ultra-low phase noise crystal as audio clock.
- Every input port supported DSD streaming, coaxial and optical supported to DSD64 by DoP technology via 24bit/176.4kHz SPDIF frame.
- There is 9 types of Sound color setting, not the digital filters, this feature using the DSP of ES9038Q2M to adjust the level of 2nd and 3rd distortion, make it sounds different.
Product description
Please check the voltage firstly,adjust it to the correct and then open to working.Thanks you.
There is 7 types of digital filter settings, set this will also change the sound color!
Audiophile powering design by couples of ultra-low noise LDO for the best performance.
High precision CNC aluminum housing.
Intelligent power protection system include over voltage and over current.
Humanized operation, sound style and digital filter can be set by user.

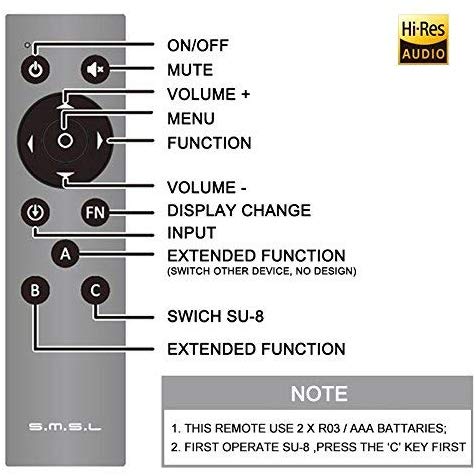

Remote control:
Note
1. This remote controller use 2 x R03/AAA battaries;
2. When you first operate SU-8,press the C key first
Specification:

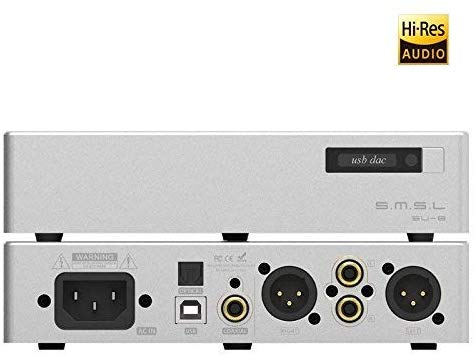

Input :USB / Optical / Coaxial
Output:RCA , XLR
Output Level:2Vrms(RCA) ,4Vrms(XLR)
THD+N:0.0003%
Dynamic range:120dB
SNR:116dB
USB compa bility:Windows 7 / 8 / 8.1 / 10 Mac OSX10.6 or Later / Linux
Bit depth
USB:1bit-32bit
Optical/coaxial:1bit-24bit
Sampling rate
USB:PCM:44.1-768kHz DSD:2.28224-22.5792MHz
Optical/coaxial:32-192kHz DSD64(DoP)
Consumption Power:3W
Standby power:<0.1W
Size:185x40x125 (WxHxD)
Weight 1.0kg
